Is there Blender like BumpNode in TSL?

Questions
, ,
1

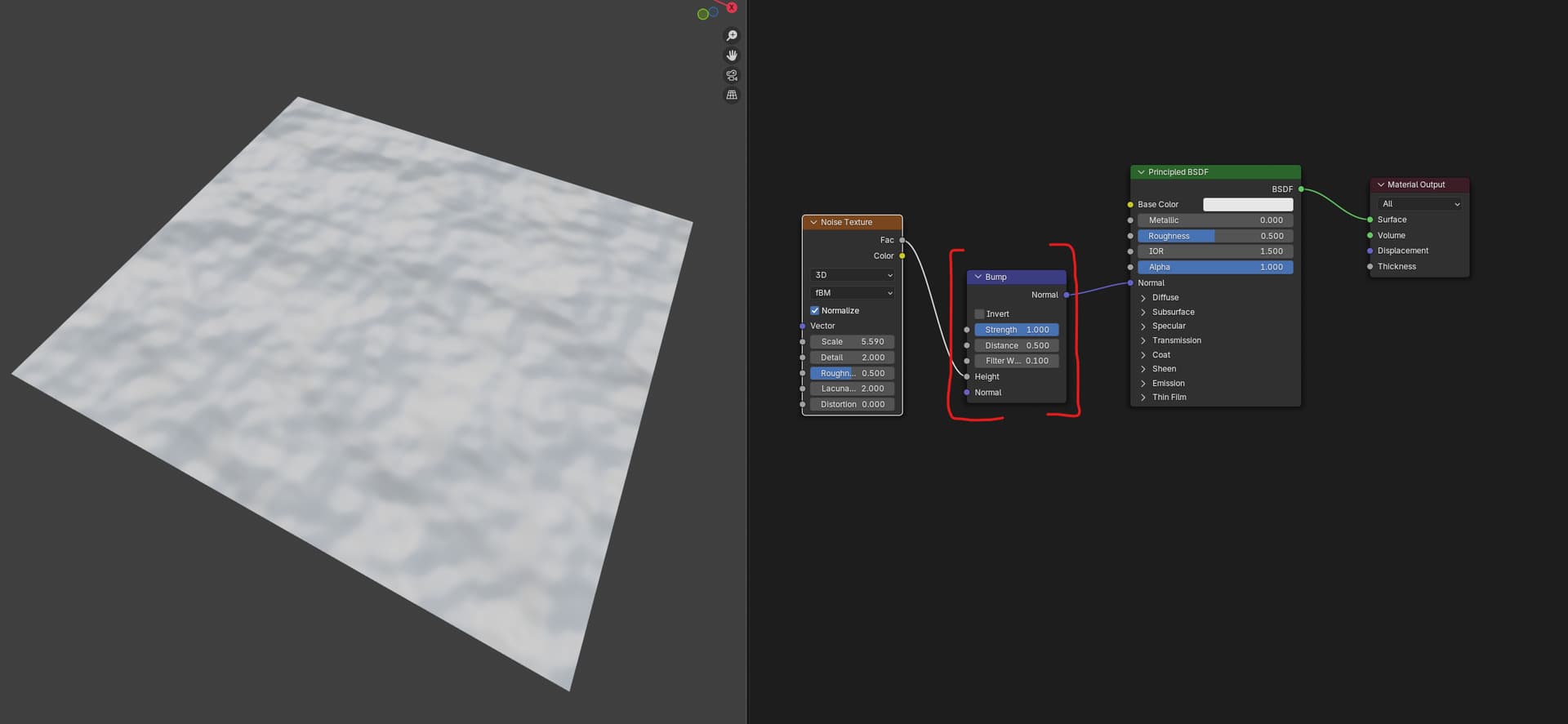

image1920×887 43.6 KB

Is there any node in TSL(Three Shading Language) similar to blender’s bump node which could take the height map and convert it to normal?

Thank you

2

Have you already tried BumpMapNode?

2 Likes
3

Thanks for the suggestion. The bumpMap node works fine for the textures. But It does not seems to work with the procedural textures such as noise node.

material.normalNode = bumpMap(mx_noise_float(uv().mul(10), 1, 0.5));

Is there any alternative node for this ? Thank you.

4

Below code should work but it seems BumpMapNode does not support this approach yet.

const noiseSampler = sample( ( uv ) => {

    return mx_noise_float( uv.mul( 10 ), 1, 0.5 );

}, uv() );

material.normalNode = bumpMap( noiseSampler );

Live demo: three.js dev tsl-bumpMap test with procedural textures - JSFiddle - Code Playground

Might be worth filing an issue at GitHub.

3 Likes
5

Some 15 releases ago I wanted to use procedurally generated bump maps but failed (Bump maps generated by a TSL function · Issue #2 · boytchev/tsl-textures · GitHub). So I decided to emulate them with normal maps. Here are three examples of normal maps making the surface look bumpy, although it is flat like an eggplant:

https://boytchev.github.io/tsl-textures/online/concrete.html
https://boytchev.github.io/tsl-textures/online/water-drops.html
https://boytchev.github.io/tsl-textures/online/rough-clay.html

5 Likes
6

Sure , I will file a feature request in GitHub.

1 Like
7

Thank you very much @PavelBoytchev .

I will look into these methods for bumpMap.

1 Like
8

Issue at GitHub:

2 Likes
