I’m wondering if someone could give me a little help creating a new buffer geometry from a selection of positions from an already existing buffer geometry, i am working in this live example and have been going nuts on it for days now
if you click the button top left once it creates a new CSG mesh from the original geometry,
if you click it again it casts rays from the CSG mesh to the original geometry,
if a face from the original geometry is intersected i push that face into an array like so cont.push(intersects[ 0 ].face)
i remove any duplicates from that array incase a face was intersected more than once and push non duplicates to result = []
i then push the resulting intersects[ 0 ].face
properties a
, b
and c
( result[f].a result[f].b result[f].c
) to a newFaces
array,
i then push the position attribute from the original geometry to a final array based on the faces that were intersected like so… (newVertices.push(objsFinal.geometry.attributes.position.array[newFaces[v]])
) which are correct in terms of amount and positions from what i can see on comparison from the original relative face indexes number and position
i am now trying to turn this final array into a new BufferGeometry like so
var newGeo = new THREE.BufferGeometry();
newGeo.setAttribute('position', new THREE.BufferAttribute(new Float32Array(newVertices), 3));
newGeo.setAttribute('normal', new THREE.BufferAttribute(new Float32Array(newNormal), 3));
var newMesh = new THREE.Mesh(newGeo, mat)

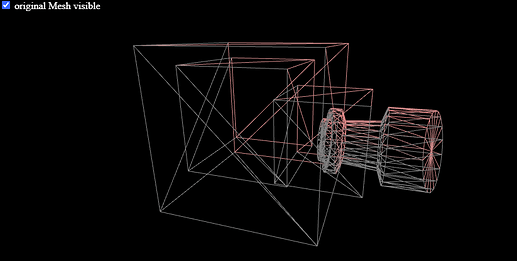

but my resulting geometry is not as expected, faces are all over the place…
is there any chance someone could have a look at the code and maybe point me in the right direction as to what’s going wrong, if there’s a step i’m missing or how i am not getting the correct positions somehow?
really appreciate any help honestly, it’s been days i’ve been trying to get this to work
@prisoner849 you’re expertise on this issue would be amazing if you could point me in the right direction at all!
