Smoke, fire, bubbles particles transparent distance sorting

Resources
1

7 Likes
2

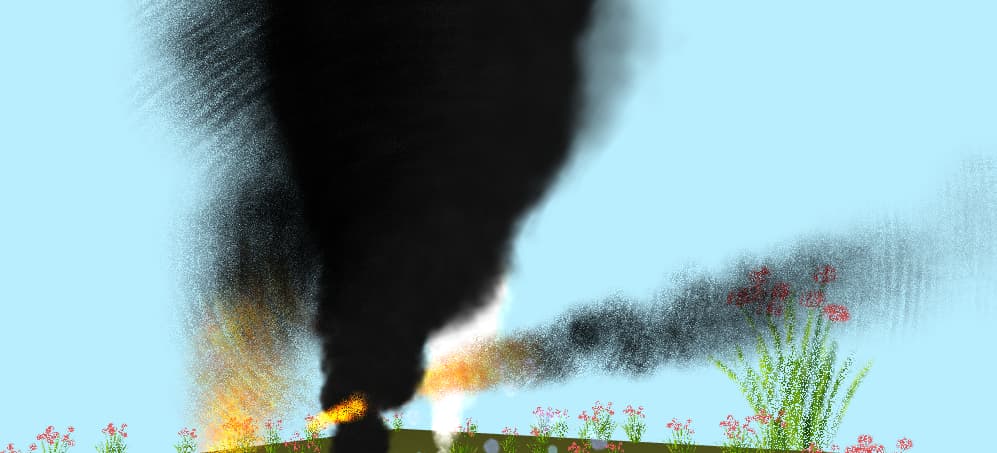

image997Ă—453 40.3 KB

What causes this strange radial effect in the smoke?

1 Like
3

I dont know. I have windows 10, PC, GoogleChrome
Try delete some settings in material

mat["sprite"]=new THREE.ShaderMaterial({
uniforms:{
map:{value:[tex["smoke"],tex["fire"],tex["grass"]]},
time:{value:0}
},
vertexShader:vs["sprite"],
fragmentShader:fs["sprite"],
side:THREE.DoubleSide,
transparent:true,
depthWrite:false,
blending:THREE.CustomBlending,
blendEquation:THREE.AddEquation,
blendSrc:THREE.OneFactor,
blendDst:THREE.OneMinusSrcAlphaFactor
});

image751Ă—249 64.9 KB

4

I get the same effect here:

image782Ă—315 57 KB

Win 11
Chrome 103.0.5060.66
GTX 1080

5

Same here, Windows 10, Chrome, Titan X. Seems to be generally the transparency.

6

Windows 10, Google chrome 103.0.5060.114 (64 bit).
AMD Radeon RX 560 Series.

Disabled “DoubleSide” and “blending”

image702Ă—287 51.1 KB

Maybe into fragmentshader need normalize value of alpha and rgb

gl_FragColor.rgb*=gl_FragColor.a;
gl_FragColor.a*=vBlend;


7

Tested on another compute and notebook (laptop). No artifacts.
