Scale gltf model dynamically

Questions
, ,
1

Hello Guys, so basically im developing a web app and want to render 3d models in my react app. I am totally noob in 3d modelling and threejs so i don’t understand the technicality, but i managed to get things running so far. This is my code,

const Model = ({ model }) => {
    const gltf = useLoader(GLTFLoader, model);
    const [centeredPosition, setCenteredPosition] = useState()

    var box = new Box3().setFromObject(gltf.scene);
    var center = new Vector3();
    box.getCenter(center);

    useEffect(() => {
        setCenteredPosition(gltf.scene.position.sub(center))
        gltf.scene.rotation.y = Math.PI;
    })

    return (
        <>
            <primitive object={gltf.scene} scale={2} position={centeredPosition} />
        </>
    );
};


const RenderModel = ({ model }) => {
    return (
        <div className={styles["globe"]}>
            <Canvas>
                <color attach="background" args={["violet"]} />
                <directionalLight intensity={1} />
                <ambientLight intensity={1} />
                <spotLight position={[10, 15, 10]} angle={0.9} />
                <Suspense fallback={null}>
                    <Model model={model} />
                    <OrbitControls autoRotate />
                    {/* <Environment preset="sunset" background  /> */}
                </Suspense>
            </Canvas>
        </div>
    )
}

So basically, in my code you can see that i have set scale={2} statically and there are big and small models uploaded, i want to automatically scale them (zoom into them) according to their size upon rendering.

Help would be deeply appreciated.

2

drei has components for that, center, resize and bounds. also you should be using drei/useGLTF instead of useLoader(GLTFLoader because the latter wouldn’t be able to handle compression ootb. there’s just so much in drei that will help you, take a moment to scroll through it all GitHub - pmndrs/drei: 🥉 useful helpers for react-three-fiber

ps if you really just want a model centered

import { Center, Gltf } from '@react-three/drei'

<Canvas>
  <Center>
    <Gltf src={url} />
  </Center>
</Canvas>
  • useGltf is for when you need to make changes to the innards of the model scene, change props, colors, etc.

same with resize, it constrains a model to a fixed unit, all models will then have the same size

<Resize scale={2}>
  <Model />
</Resize>
1 Like
3

Thank you very much, everything is working now <3

4

So, i uploaded another model. The model is not vertically centered now, i believe it has somewhat to do with the model made.

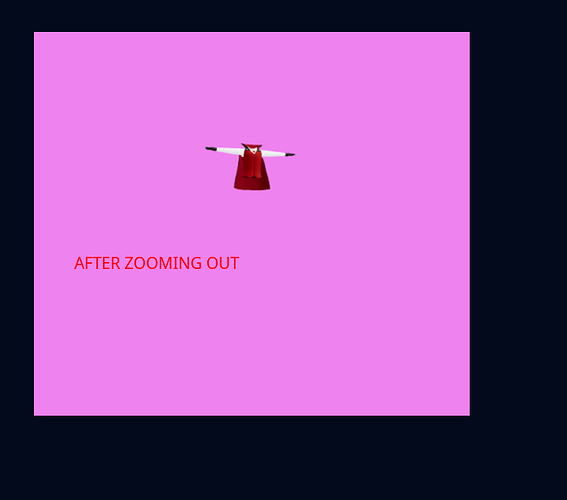

image715×642 6.09 KB

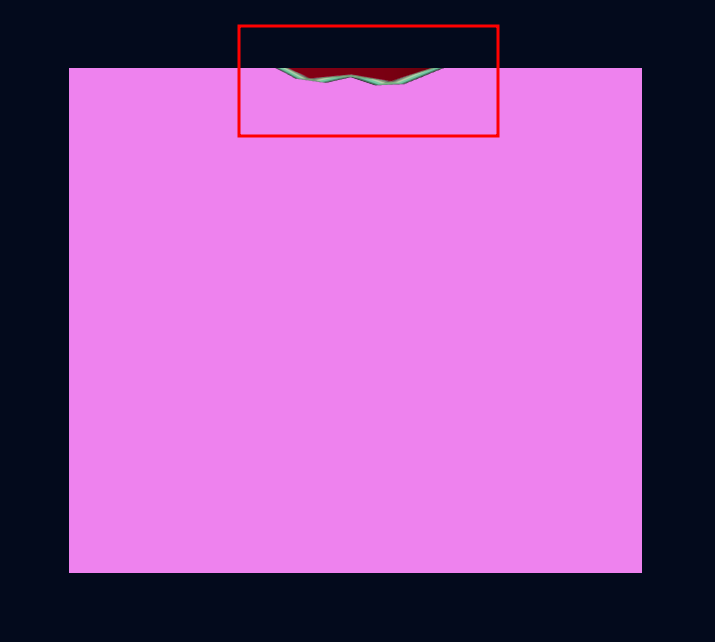

image747×658 10.3 KB

Any idea how can i fix this?

5

skinned models return wrong bounds (as in box3.fromObject), you cant center them or rely on bounds. there’s some workaround somewhere but forgot where i’ve seen it.
