Multiple scenes positioning issue

Hey there,

I experience a rendering issue when trying to create multiple scenes reusing the same same renderer, bounding scene dimensions to HTML div elements being placed above the canvas.

I tried to debug this, recently I found out that the second scene does not render at all.

Some relevant code parts to help this through:

//App:
//...
this.addScene('main', new SceneDisplayProps());
    this.addScene('other', new SceneDisplayProps());
    (this.scenes.get('main') as ChartScene).addComponent(new FilledCandle(100, 100, 20, 20, 0x00ff00));
    (this.scenes.get('other') as ChartScene).addComponent(new FilledCandle(100, 100, 20, 20, 0x0088ff));
export class RenderingContext {
  private contentElement: HTMLElement = document.getElementById('content') as HTMLElement;
  constructor(
    readonly scenes: Map<string, ChartScene> = new Map(),
    readonly canvas: HTMLCanvasElement = document.getElementById( 'c' ) as HTMLCanvasElement,
    readonly renderer = new THREE.WebGLRenderer({ canvas: canvas })
  ) {
    renderer.autoClear = false;
    renderer.setSize(window.innerWidth, window.innerHeight);
    renderer.setClearColor( 0x000000, 1 );
    renderer.setPixelRatio( window.devicePixelRatio );
  }
//...
addScene(sceneName: string, displayProps: SceneDisplayProps) {
    if (sceneName === '') {
      throw new Error('Unnamed scene');
    }
    const scene = new ChartScene(this);
    scene.name = sceneName;
    const sceneElemName = `scene_${scene.name}`;
    this.contentElement.insertAdjacentHTML('beforeend', `<div id="${sceneElemName}" style="${displayProps.asCss()}"></div>`);
    const sceneElem = document.getElementById(sceneElemName) as HTMLElement;
    const rect = sceneElem.getBoundingClientRect();
    const camera = new THREE.OrthographicCamera(rect.width / -2, rect.width / 2, rect.y / 2, rect.height / -2);
    camera.translateZ(10);
    camera.updateProjectionMatrix();
    scene.userData = {...scene.userData, ...{element: document.getElementById(sceneElemName), camera: camera, elementOriginalDimensions: rect}};

    this.scenes.set(sceneName, scene);
  }
rerender() {
    this.renderer.setScissorTest(false);
    this.renderer.clear(true, true);
    this.renderer.setScissorTest(true);

    this.scenes.forEach((scene) => {
      const sceneUserData = scene.userData as SceneUserData;
      const {left, right, top, bottom, width, height} = (sceneUserData.element as HTMLElement).getBoundingClientRect();
      this.renderer.setViewport(left, bottom, width, height);
      this.renderer.setScissor(left, bottom, width, height);

      sceneUserData.camera.left = width / -2;
      sceneUserData.camera.right = width / 2;
      sceneUserData.camera.top = height / 2 ;
      sceneUserData.camera.bottom = height / -2;

      sceneUserData.camera.updateProjectionMatrix();
      const cameraHelper = new CameraHelper(sceneUserData.camera);
      scene.add(cameraHelper);

      this.renderer.render(scene, sceneUserData.camera);
    });
  }

It would help a lot, if you can give me a clue how to go on debugging this.

1 Like

Have you set/disabled renderer.autoClearColor = false ?

If you’re trying to render multiple scenes to the same buffer, you have to disable autoclear, or it will clear out the previous render before doing the next one.

I did, just forgot to paste that part of the code.

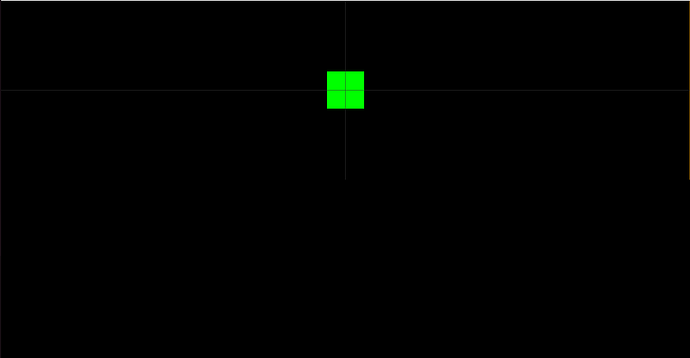

I attached what I get with CameraHelper. Currently, it keeps the first render, and the second render is not visible.
