Mixamo FBX Animation

Questions
1

I have loaded a Mixamo FBX, somehow the animation doesnt play The model displays, and the clip looks fine, i think there is an issue with the AnimationMixer

//ANIMATIONS TEST
    const loader = new FBXLoader();
    loader.load(
      "./assets/3d/animations/Remy.fbx",
      (anim) => {
        console.log("anim loaded", anim);
        const animClip1: any = anim;

        this.sceneStore.threeScene.add(animClip1);
        animClip1.children.forEach((child) => {
          child.scale.set(0.01, 0.01, 0.01);
          child.position.set(0.01, 0.01, 0.01);
          child.layers.enableAll();
        });
        animClip1.layers.enableAll();
        animClip1.name = "anim clip";


        const mixer = new THREE.AnimationMixer(animClip1);
        const clip = THREE.AnimationClip.findByName(
          animClip1.animations,
          "mixamo.com"
        );
        const action = mixer.clipAction(clip);
        action.play();

      },
      (xhr) => {
        console.log((xhr.loaded / xhr.total) * 100 + "% loaded");
      },
      (error) => {
        console.log(error);
      }
    );```

Screenshot 2024-10-28 at 6.16.00 PM
Screenshot 2024-10-28 at 6.16.00 PM764×393 57.7 KB

2

Character and animations are separate downloads from Mixamo, if I recall.

Animations are downloaded without skin, and applied to the model.

I downloaded Michelle with a hip hop dance:

michelle

let mixer;

async function loadFbx(url) {
  const loader = new FBXLoader();
  return new Promise((resolve, reject) => {
    loader.load(
      url,
      (object) => resolve(object),
      (xhr) => console.log(`${(xhr.loaded / xhr.total) * 100}% loaded`),
      (error) => reject(error),
    );
  });
}

async function init() {
  try {
    const object = await loadFbx("/Ch03_nonPBR.fbx");
    const anim = await loadFbx("/Arms Hip Hop Dance.fbx");

    mixer = new AnimationMixer(object);
    const action = mixer.clipAction(anim.animations[0]);
    action.play();

    scene.add(object);
  } catch (error) {
    console.error("An error happened", error);
  }
}

init();

This also works if I use the lookup by name as in your example:

    mixer = new AnimationMixer(object);
    const clip = AnimationClip.findByName(anim.animations, "mixamo.com");
    const action = mixer.clipAction(clip);
    action.play();

Make sure your animation loop is updating the mixer:

const clock = new Clock();

renderer.setAnimationLoop(() => {
  renderer.render(scene, camera);

  const delta = clock.getDelta();

  if (mixer) {
    mixer.update(delta);
  }
});
3

Yes that was it, thank you!

1 Like
4

I remembered this class I made for animations, still working

can create a json direct in - https://didisoftwares.ddns.net/6
and use with https://didisoftwares.ddns.net/6/js/mixamo.js

need change only header, point to three.js module

import * as THREE from './module.js';

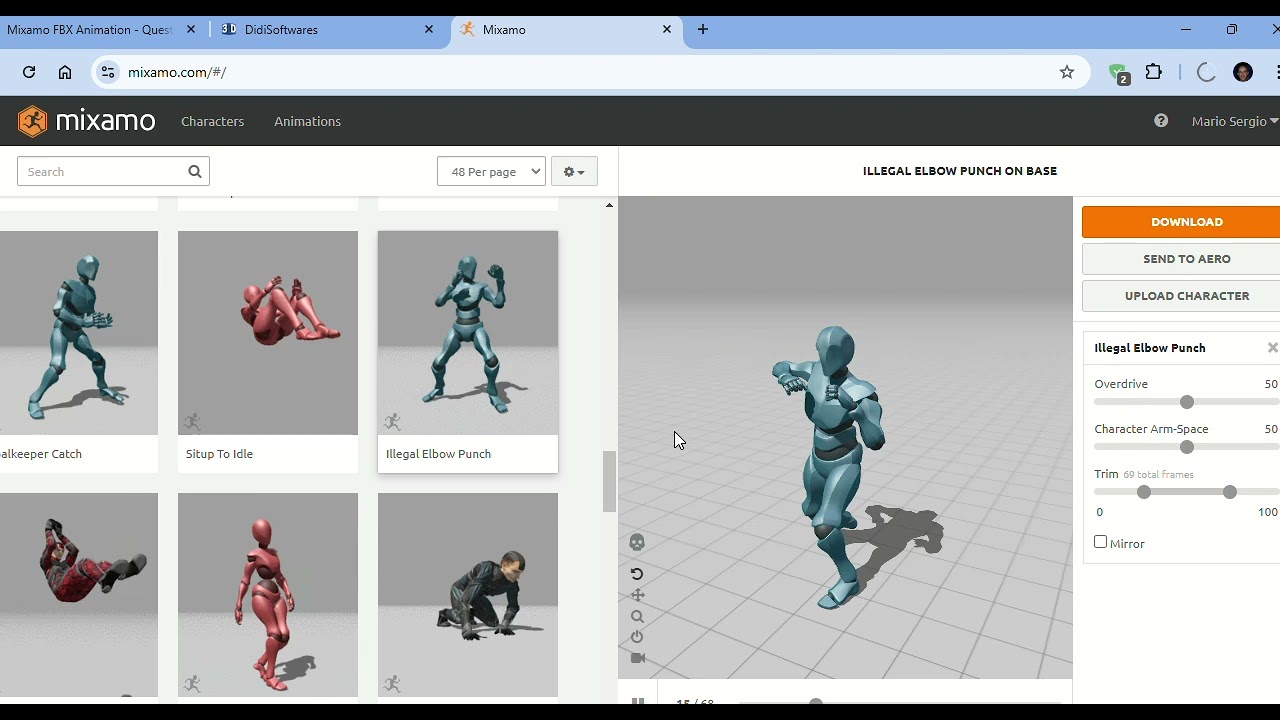

if want new animation from mixamo just use this base character, upload to mixamo, select new animation and download base character
https://didisoftwares.ddns.net/6/models/base.fbx

import { MixamoIntegration } from './js/mixamo.js';

//load and use animation list
 await mixamo.create({
        allowDownload: true,                //setting true, maintain source models in memory, or clear afeter load
        scene: scene,                       //current scene
        animations: './models/motions.json' //if not defined use only TPOSE or default loaded
    });

model = await mixamo.loadModel('./models/tpose.glb');

/*if have premade configuration for this model
let configuration=await fetch('./config.json').then(response => response.json());
load a model and seting configuration
model = await mixamo.loadModel('./model.glb',configuration);
*/

function update() {
    var delta = clock.getDelta();
    mixamo.update(delta);
    requestAnimationFrame(update);
}

and have this functions

mixamo.animationStopAll(model);
mixamo.changeAnimation(model,'animationame',weight); //weight 0 to 1
mixamo.changeAnimationWithLerp(model,'animationame',weight,time);//time in seconds
mixamo.clearModelAnimations(model); //empty animations
mixamo.getAnimationRunning(model); //get current animation running
mixamo.loadAnimations('json_file'); //set default animations to new loaded models
mixamo.reloadModelAnimations(model); //clear all animations and reload
mixamo.setAnimationUpperBody(model,'name',time); //change upper body animation only time in seconds
mixamo.setAnimationLowerBody(model,'name',time); //change animation on lower body
mixamo.unloadModel(model); //remove model

//you can change animation by model actions too
model.mixamo.action['animationname'].toggle();

model.mixamo.action //list of all animations atached

you can test functions directly in ‘didisoftwares.ddns.net/6’ console
MM is a mixamo, and model are exposed

1 Like
