Seams on texture

Questions
1

I made a model in a Blender and decided to bake texture because I need a special effect of the lights. After baking and exporting, my model has lines of its own. I try to fix lines with minFilter but no luck.

gltf.scene.traverse(n => {
        if (n.isMesh) {
            n.castShadow = true;
            n.receiveShadow = true;
            if (n.material.map) {
                n.material.vertexColors = false;
                n.material.map.anisotropy = 16;
                n.material.map.minFilter = THREE.LinearFilter;
                n.material.map.maxFilter = THREE.LinearFilter;
                n.material.map.encoding = THREE.sRGBEncoding;
                n.material.map.value.wrapS = uniforms.texture.value.wrapT = THREE.RepeatWrapping;
            }

        }
    });

lines
lines1888Ă—950 25.8 KB

2

First solution - increase texture size.
Second solution - increase UV percision to 6 digits like 0.006857
Third solution add texture padding in blender.
Fourth solution use phoshop texture filling by content.

Fifth solution: your uv splited by triangles. Need merge triangles .Then you can use small texture


1 Like
3

statickideo
statickideo1920Ă—1920 81.1 KB

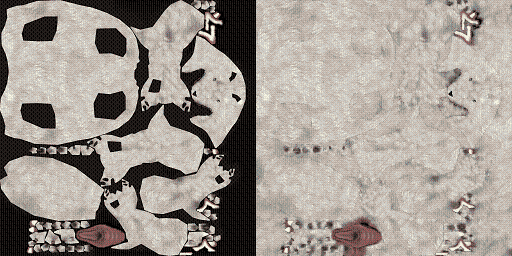

this is my texture

4

all your triangles are touching each other - give them some personal space

5

newUV
newUV1436Ă—780 141 KB

I will try with this UV

6

I use 3ds max and flatten mappin or box unwrapping

image515Ă—627 13.5 KB

7

Into 3ds max texture baking - padding

image898Ă—328 31.1 KB

8

I do not know how to use 3ds max, I added space in blender but I still have seams. :pensive:
and I am not good at uv mapping so i use “smart uv project”. Do you know some trick to fix this in three.js?

9

Somedoby help you. I have blender, but dont know how to use him
https://docs.blender.org/manual/en/latest/modeling/meshes/editing/uv.html

10

i use UVPackmaster 3 - Blender Market and it’s a thousand times better than smart unwrap. it also warns you if it detects overlap and otherwise fixes it by packing texture islands.

1 Like
11

Thanks a lot I will try and let you know

12

Is there a free version?

13

Where I can do this “increase UV percision”? I have tried all the other solutions and they are not good

14

Best solution - good UV unwrap.

15

I try blender. Into up of menu select “UV Editing”. Select vertices of your object.

image960Ă—457 120 KB

Into menu select “UV” and “Smart UV Project”
image726Ă—429 127 KB

Change setting there
I got good uv unwrap
