So I have this chunk of BoxGeometries and using raycaster I can remove some of the geometries, for optimisation purposes I do not render faces which are obstructed by other boxes. Everything works fine, until I start removing some of the boxes. Some of the removed blocks just remove only like 2 faces and the rest is still visible, although it should remove the object directly from the scene. Im using material array, here is the essential code:
var block_faces = [
[ 0, 0, 5, "front" ],
[ 0, 5, 0, "top" ],
[ 5, 0, 0, "right" ],
[ 0, 0, -5, "back" ],
[ 0, -5, 0, "bottom" ],
[ -5, 0, 0, "left" ]
];
var chunks = [ ];
function block(x, y, z, type) {
var root = this;
this.position = new THREE.Vector3(x * 5, y * 5, z * 5);
this.x = x * 5;
this.y = y * 5;
this.z = z * 5;
if(!type) {
type = "block";
}
this.type = type;
this.renderFaces = [ ];
this.getVoxel = function(x, y, z) {
var _ret = true;
chunks.forEach(function(chunk) {
chunk.blocks.forEach(function(block) {
if(block.x == x && block.y == y && block.z == z) {
_ret = false;
}
});
});
return _ret;
}
this.getVoxelObj = function(x, y, z) {
var _ret = false;
chunks.forEach(function(chunk) {
chunk.blocks.forEach(function(block) {
if(block.x == x && block.y == y && block.z == z) {
_ret = block;
}
});
});
return _ret;
}
this.render = function() {
block_faces.forEach(function(i) {
if(root.getVoxel(root.x + i[0], root.y + i[1], root.z + i[2]) == true) {
root.renderFaces.push(i[3]);
}
});
root.object = new THREE.Mesh(geometries["block"], [
(root.renderFaces.includes("right") ? material[0] : new THREE.MeshBasicMaterial({ visible: false })),
(root.renderFaces.includes("left") ? material[1] : new THREE.MeshBasicMaterial({ visible: false })),
(root.renderFaces.includes("top") ? material[2] : new THREE.MeshBasicMaterial({ visible: false })),
(root.renderFaces.includes("bottom") ? material[3] : new THREE.MeshBasicMaterial({ visible: false })),
(root.renderFaces.includes("front") ? material[4] : new THREE.MeshBasicMaterial({ visible: false })),
(root.renderFaces.includes("back") ? material[5] : new THREE.MeshBasicMaterial({ visible: false }))
]);
root.object.position.x = root.x;
root.object.position.y = root.y;
root.object.position.z = root.z;
root.object.holder = root;
scene.add(root.object);
}
this.break = function() {
chunks.forEach(function(chunk) {
chunk.blocks.forEach(function(block, index, object) {
if(block.x == root.x && block.y == root.y && block.z == root.z) {
object.splice(index, 1);
}
});
});
root.object.removeFromParent();
root.triggerUpdate();
}
this.triggerUpdate = function() {
block_faces.forEach(function(dir) {
if(root.getVoxelObj(root.x + dir[0], root.y + dir[1], root.z + dir[2]) != false) {
root.getVoxelObj(root.x + dir[0], root.y + dir[1], root.z + dir[2]).update();
}
});
}
this.update = function() {
console.log("update");
root.render();
}
}
function chunk(x, z) {
var root = this;
this.x = x * 16 * 5;
this.z = z * 16 * 5;
this.blocks = [ ];
for(var x = root.x; x < 16; x++) {
for(var z = root.z; z < 16; z++) {
for(var y = -1; y > -16; y--) {
root.blocks.push(new block(x, y, z));
}
}
}
chunks.push(this);
root.blocks.forEach(function(block) {
block.render();
});
}
new chunk(0, 0);

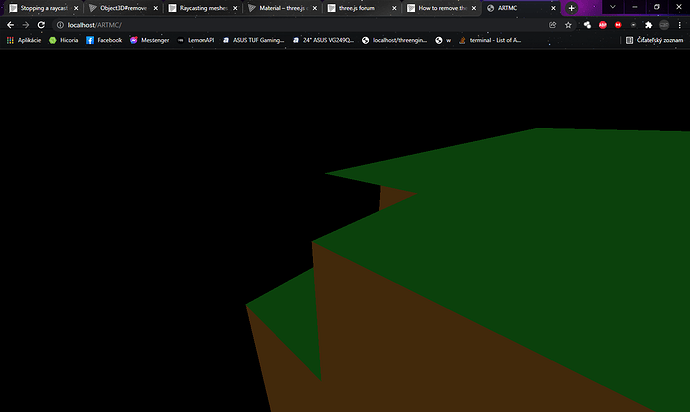

Insight (Both screenshots are from the same scene, only different angles, the edge block disappears correctly, the other one does not):
Edit: Tried BoxBufferGeometry, nothing changes, some faces are still kept in the scene after removing the object.
