Real-time 3D visualilzer for convolutional neural networks

Showcase
1

Neuromancer :robot:

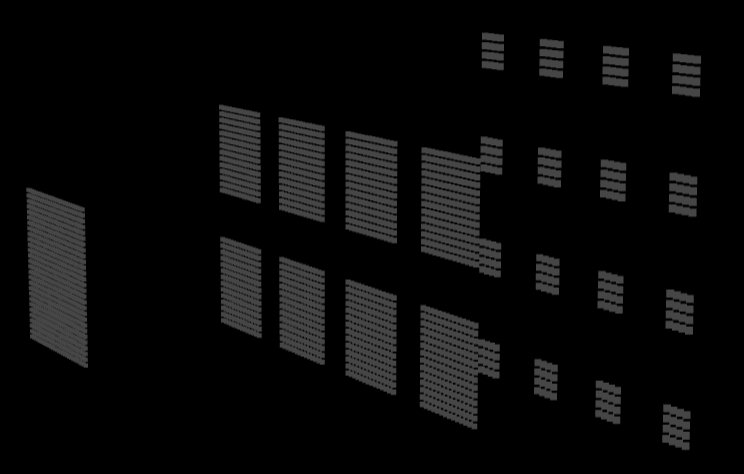

3d visualizer for convolutional neural networks.
Made with Svelte + Threlte.

demo

Give it a try here

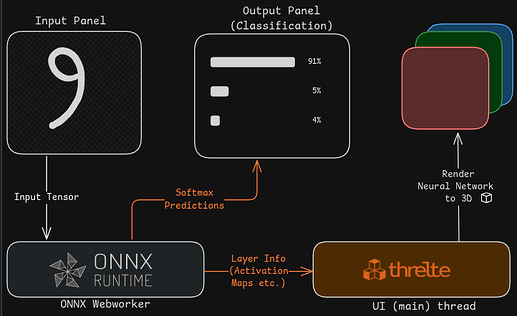

How it works

  • I run a neural network in a seperate webworker using ONNX Web Runtime.
  • Before painting each frame, extract values from the network and render them into 3d with Threlte- which is basically svelte + three.js.

image722×442 41.3 KB

:sparkles: on Github

10 Likes
2

It was fun, especially when I tried it with non-digits. Spent some time trying to confuse the network. As expected, sometimes a small change in the input made a drastic change in the output.

1 Like
3

Thanks for checking it out.
I see, being able to visualize neural networks still doesn’t make them intuitive to us :man_shrugging:

1 Like
