PDB Molecule - how to convert to instanced meshes

Questions
1

Looking for some help figuring out the rotation for conversion to instanced meshes.

The official three.js example can be seen here and code of my PDB Viewer can be seen here.

So far, I have managed to instance atoms, since they did not require rotation, but am stuck on converting bonds to instanced meshes and figuring out their rotation.

If anybody does have some suggestions then feel free to share it.

The pictures below reflect before and after situations.

Here is the part of the function which I am trying to convert to instanced mesh:

positions = geometryBonds.getAttribute( 'position' );

	const start = new THREE.Vector3();
	const end = new THREE.Vector3();

	for ( let i = 0; i < positions.count; i += 2 ) {

		start.x = positions.getX( i );
		start.y = positions.getY( i );
		start.z = positions.getZ( i );

		end.x = positions.getX( i + 1 );
		end.y = positions.getY( i + 1 );
		end.z = positions.getZ( i + 1 );

		start.multiplyScalar( 75 );
		end.multiplyScalar( 75 );

		const object = new THREE.Mesh( boxGeometry, new THREE.MeshPhongMaterial( { color: 0xffffff } ) );
		object.position.copy( start );
		object.position.lerp( end, 0.5 );
		object.scale.set( 5, 5, start.distanceTo( end ) );
		object.lookAt( end );
		root.add( object );

	}

Before
Before676×580 49.3 KB

and here is my attempt, which still does not have the rotation but produces the output as in the following picture:

positions = geometryBonds.getAttribute( 'position' );

	const start = new THREE.Vector3();
	const end = new THREE.Vector3();
	const object = new THREE.InstancedMesh( boxGeometry, new THREE.MeshPhongMaterial( { color: 0xffffff } ), parseInt( positions.count / 2.0 ) );

	for ( let i = 0; i < positions.count; i += 2 ) {

		start.x = positions.getX( i );
		start.y = positions.getY( i );
		start.z = positions.getZ( i );

		end.x = positions.getX( i + 1 );
		end.y = positions.getY( i + 1 );
		end.z = positions.getZ( i + 1 );

		start.multiplyScalar( 75 );
		end.multiplyScalar( 75 );

		let m4 = new THREE.Matrix4();
		m4.makeScale( 5, 5, start.distanceTo( end ) );
		m4.setPosition( start.lerp( end, 0.5 ) );

		object.setMatrixAt( parseInt( i / 2.0 ), m4 );
		object.instanceMatrix.needsUpdate = true;

	}

	root.add( object );

After
After676×580 49.8 KB

All this so the number of draw calls could be reduced and some larger molecule examples could be easier loaded and manipulated, like examples from the RCSB Protein Data Bank(H.M. Berman, J. Westbrook, Z. Feng, G. Gilliland, T.N. Bhat, H. Weissig, I.N. Shindyalov, P.E. Bourne, The Protein Data Bank (2000) Nucleic Acids Research 28: 235-242 Protein Data Bank | Nucleic Acids Research | Oxford Academic).

2

You’re on the right track.

Sometimes instead of fiddling with the matrices, i use a dummy object to build transformation then just write its matrix to the instanceMatrix array.
With an object you can also use .lookAt instead of manually figuring out rotations.
smth like:

let dummy = new THREE.Object3D();

....
dummy.position.copy(start).lerp(end,.5);
dummy.lookAt( end );
object.setMatrixAt(parseInt( i / 2.0 ),dummy.matrix)
3 Likes
3

Thanks for the reply.

Resolving this does not have any importance attached to it. Not to mention that resolving the actual atom labels would be more of a solution than resolving atom bonds - this since labels are css2d objects which slow down the rendering.

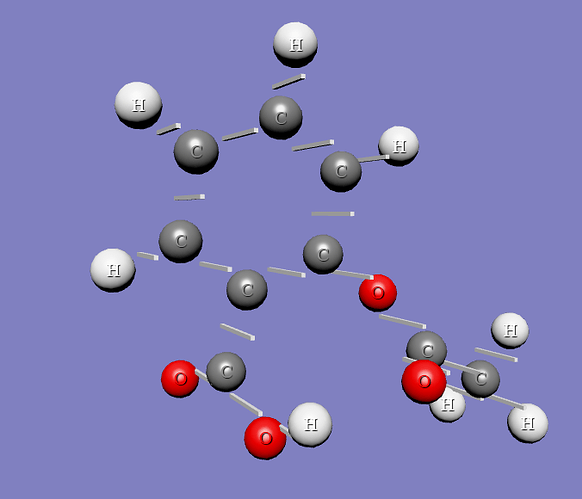

I did try keeping the current code, adding an instanced object to it and passing each mesh matrix to this instanced object - the result can be seen in the attached picture.

Even though this is equivalent to your suggestion, I did bother just plugging in your code and the result is still the same.

Dual
Dual660×650 51.1 KB

4

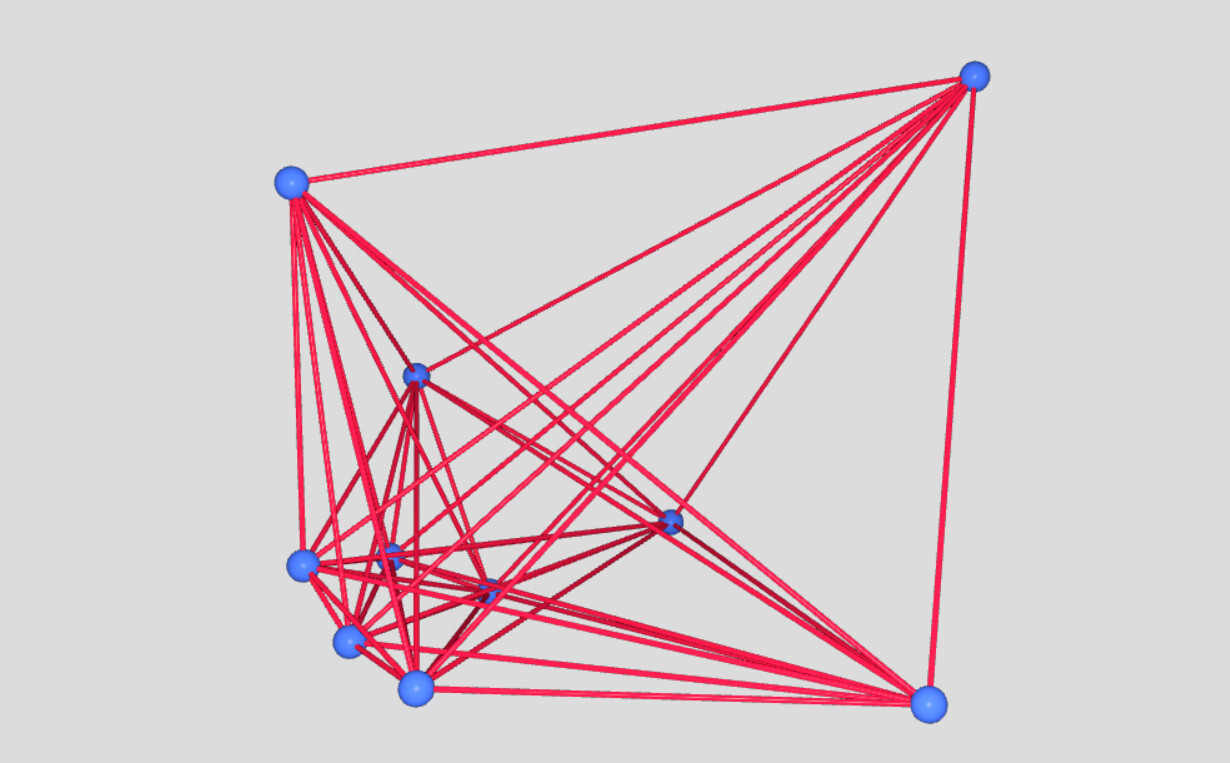

When I try it, I see no issues at all (please, note the use of .updateMatrix). The blue balls are instanced icosahedrons. The red lines are instanced cylinders.

dummy.position.lerpVectors( pos[i], pos[j], 0.5 );
dummy.lookAt( pos[j] );
dummy.scale.z = pos[i].distanceTo(pos[j]);
dummy.updateMatrix(); // important
allLines.setMatrixAt( k, dummy.matrix );

image1230×763 148 KB

4 Likes
5

Yes, the updateMatrix() was the missing part.

Now all that’s left is to figure out the atom labels (maybe in some other post).

6

For those who might be interested, in my own way I did convert the labels to instanced object as well (see the link to code of my viewer in my first post).

Now instead of css2d it is using text geometry which does make these labels a bit more static.
