Mesh with TubeGeometry and LineCurve3

Questions
,
1

I am using TubeGeometry to show line between 2 points .

I am using LineCurve3 for path.

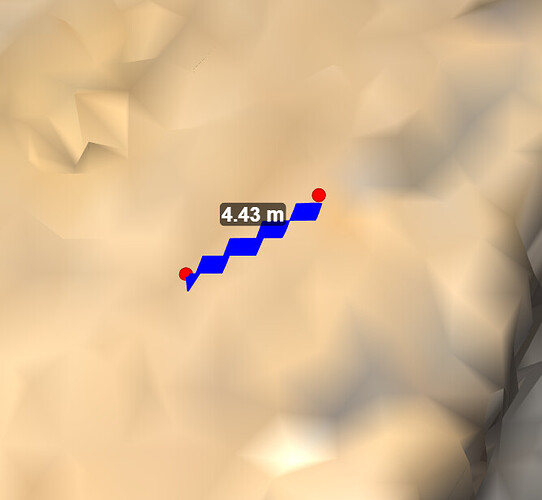

As you can see in below image , mesh is twisted along axis

image668×616 36.3 KB

below is code used to genrate mesh where firstPoint & secondPoint are Three.Vector3().

var path = new THREE.LineCurve3(firstPoint, secondPoint);
var tubegeometry = new THREE.TubeGeometry(path, 20, .2, 8, false);
var material = new THREE.MeshBasicMaterial({ color: 0x0000ff });
var line = new THREE.Mesh(tubegeometry, material);
2

I would use a different approach: with a cylinder, scaled on one dimension, and using of .lookAt(): https://jsfiddle.net/prisoner849/86dgxp0c/


1 Like
3

https://discourse.threejs.org/t/how-to-create-a-pipeline-geometry-as-shown-below-from-two-vectors/58710
I would like to ask, can this method create the geometry of this link?
