Animate path between two points on globe threejs

Questions
1

Hi, I am trying to learn everything that can be related to visualization on the globe. I created functions that put a point on the globe depending on latitude and longitude and connect them with a curve. I would like that curve to have a draw animation but I don’t know how to do it. Like here, but without globe.gl library
Github Globe Clone using Three.js | Three.js Portfolio Website - YouTube.

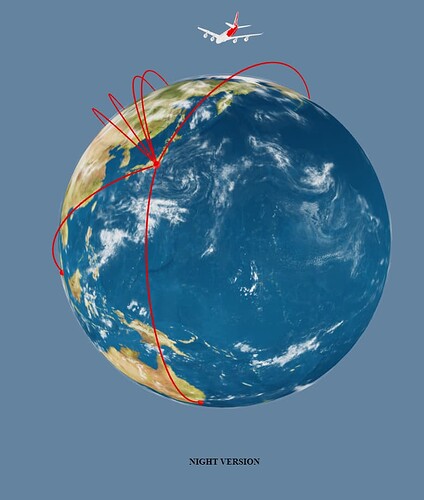

globe
globe780×918 46.2 KB

const geometryObject = new THREE.SphereGeometry(0.015, 32, 16);
const materialObject = new THREE.MeshBasicMaterial({ color: 0xff0000 });


function placeObjectOnPlanet(name, lat, lon, radius) {
    const object = new THREE.Mesh(geometryObject, materialObject);
    scene.add(object);

    object.name = name;
    var latRad = lat * (Math.PI / 180);
    var lonRad = -lon * (Math.PI / 180);
    object.position.set(
        Math.cos(latRad) * Math.cos(lonRad) * radius,
        Math.sin(latRad) * radius,
        Math.cos(latRad) * Math.sin(lonRad) * radius
    );
    //console.log("x je : " + Math.cos(latRad) * Math.cos(lonRad) * radius);
    //console.log("y je : " + Math.sin(latRad) * radius);
    //console.log("z je : " + Math.cos(latRad) * Math.sin(lonRad) * radius);

    object.rotation.set(0.0, -lonRad, latRad - Math.PI * 0.5);

}

let xyz = new THREE.Vector3();

function radialToDecart(lat, lon, radius) {
    var latRad = lat * (Math.PI / 180);
    var lonRad = -lon * (Math.PI / 180);
    xyz.set(
        Math.cos(latRad) * Math.cos(lonRad) * radius,
        Math.sin(latRad) * radius,
        Math.cos(latRad) * Math.sin(lonRad) * radius
    );
    return xyz;
}

function makeCurve(name1, lat1, lon1, name2, lat2, lon2) {
    /* Load object */
    const loaderPlane = new GLTFLoader();
    loaderPlane.load(
        './obj/plane.glb',
        function(gltf) {
            scene.add(gltf.scene);

            gltf.scene.position.x = 0;
            gltf.scene.position.y = 1.2;
            gltf.scene.position.z = 0;
            gltf.scene.scale.set(0.1, 0.1, 0.1);
            gltf.scene.frustumCulled = true;

            globeReady = true;
            globe = gltf.scene;

        },
        function(xhr) {
            console.log((xhr.loaded / xhr.total * 100) + '% loaded');
        },
        function(error) {

            console.log('An error happened');
        }
    );

    let x, y, z;

    let points = [];

    let v1 = new THREE.Vector3();
    let v2 = new THREE.Vector3();

    v1.set(radialToDecart(lat1, lon1, 1).x, radialToDecart(lat1, lon1, 1).y, radialToDecart(lat1, lon1, 1).z);
    v2.set(radialToDecart(lat2, lon2, 1).x, radialToDecart(lat2, lon2, 1).y, radialToDecart(lat2, lon2, 1).z);

    for (let i = 0; i <= 20; i++) {
        let p = new THREE.Vector3().lerpVectors(v1, v2, i / 20);
        p.normalize();
        p.multiplyScalar(1 + 0.1 * Math.sin(Math.PI * i / 20));
        points.push(p);
    }

    let path = new THREE.CatmullRomCurve3(points);

    const geometryCurve = new THREE.TubeGeometry(path, 40, 0.003, 8, false);
    const materialCurve = new THREE.MeshBasicMaterial({ color: 0xff0000 });
    //const materialCurve = materialShader;
    const line = new THREE.Mesh(geometryCurve, materialCurve);
    scene.add(line);

}
2

Hi!
Maybe this topic will be helpful: Global Impacts (waves + trails)

3

Hi, looks so cool! I will check

4

I made this function for drawing and i like it

function animateLineDrawing(lineMain, delay){
  let nEnd = 0;
  let nMax;
  let nStep = 5;
  let geometry = lineMain.geometry;
  nMax = geometry.attributes.position.count*6;
  let lineTo = {val: nEnd};
  new TWEEN.Tween(lineTo)
          .to({val: nMax}, 1000)
          .delay(1000 * delay)
          .onStart(()=>{
              scene.add(lineMain);
          })
          .onUpdate(()=>{
            lineMain.geometry.setDrawRange( 0, lineTo.val );
              renderer.render(scene, camera);
          })
          .onComplete(()=>{
              if(delay == 1){

              }
              animateLineUndrawing(lineMain, nMax, 0.5, name);
          })

          .start();
}

But i do not know how to make function for undrawing, i love your animation. My now works spot p1 to spot p2, for undrawing go again in spot p1. I do not like that, I want undrawing like yours.

function animateLineUndrawing(lineMain, maxUn, delay, name){
  let nEnd = maxUn;
  let nMax;
  let nStep = 5;
  let geometry = lineMain.geometry;
  nMax = 0;
  let lineTo = {val: nEnd};
  new TWEEN.Tween(lineTo)
          .to({val: nMax}, 1000)
          .delay(1500 * delay)
          .onStart(()=>{
              scene.add(lineMain);
          })
          .onUpdate(()=>{
              lineMain.geometry.setDrawRange( 0, lineTo.val );
              renderer.render(scene, camera);
          })
          .onComplete(()=>{
              if(delay == 1){

              }
          })
          .start();
}
