Raycaster.params not working with Mesh

Questions
1

I created one sphere and Points and added to the scene to (0,0,0)
now I want to select these with raycaster. My aim to select all nearby meshes and points within some range.

so I used “params” properties of raycaster.
but It only works with points.

when I clicked on right away on points and mesh. I got result of both intersection.
but when I clicked at some distance I can only got result of Points.

var raycaster = new THREE.Raycaster();

    raycaster.params.Mesh.threshold = 20

    raycaster.params.Points.threshold = 20

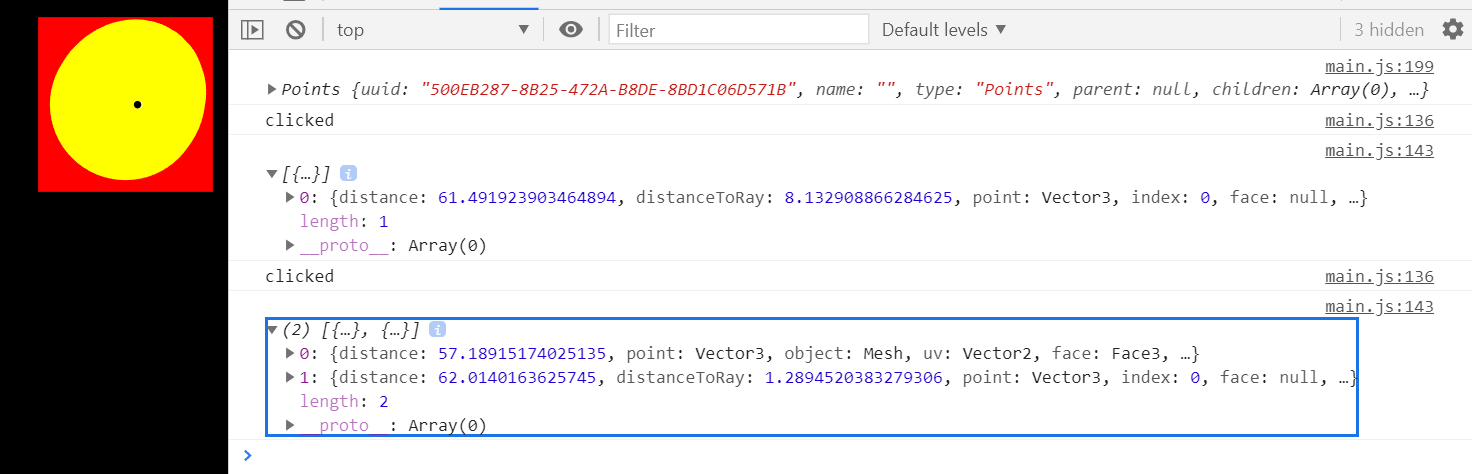

In image white dot it my cursor, Red is Points object, and yellow is my mesh.

image1474×316 20.3 KB

in this image black dot is my cursor

image1472×474 32.7 KB

2

It seems that raycaster.params.Mesh is not actually used by the code. See the result of this source search: Search · params.Mesh · GitHub

If it was used, it should appear in the raycast() method of the Mesh object, increasing the size of the bounding sphere and bounding box tests, but it doesn’t: three.js/Mesh.js at 766b95bad6ae2c98c5bf1c4c775c7c9e8f72f2d2 · mrdoob/three.js · GitHub

3

There is no threshold parameter for meshes. If you check the documentation page of Raycaster closely, you will see that it is only possible to define a threshold for point clouds and lines. The configuration object for meshes is actually empty.

Although empty, the mesh configuration object was added just for the case a configuration parameter might be required in the future.
