How to rotate a obj file and stop in specified position

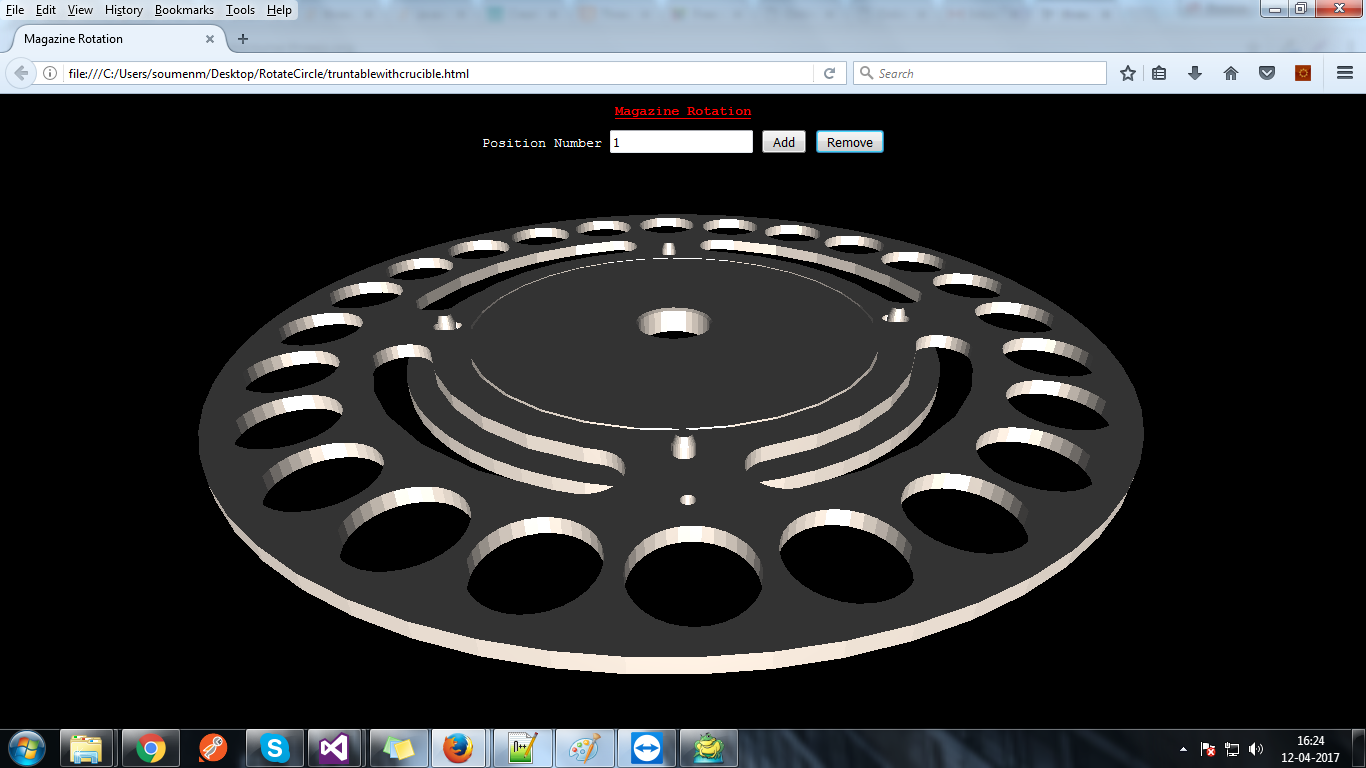

I have make a animation using two obj file. In first obj file have 24 hole. I want to rotate the first obj file.If i give position 3 obj file rotate and 3 position came front of the screen.Attach obj file image.

I wish i understood a single aspect of this question :slight_smile:

Agreed… @soumen89 could you try explaining what you’re trying to do once again?

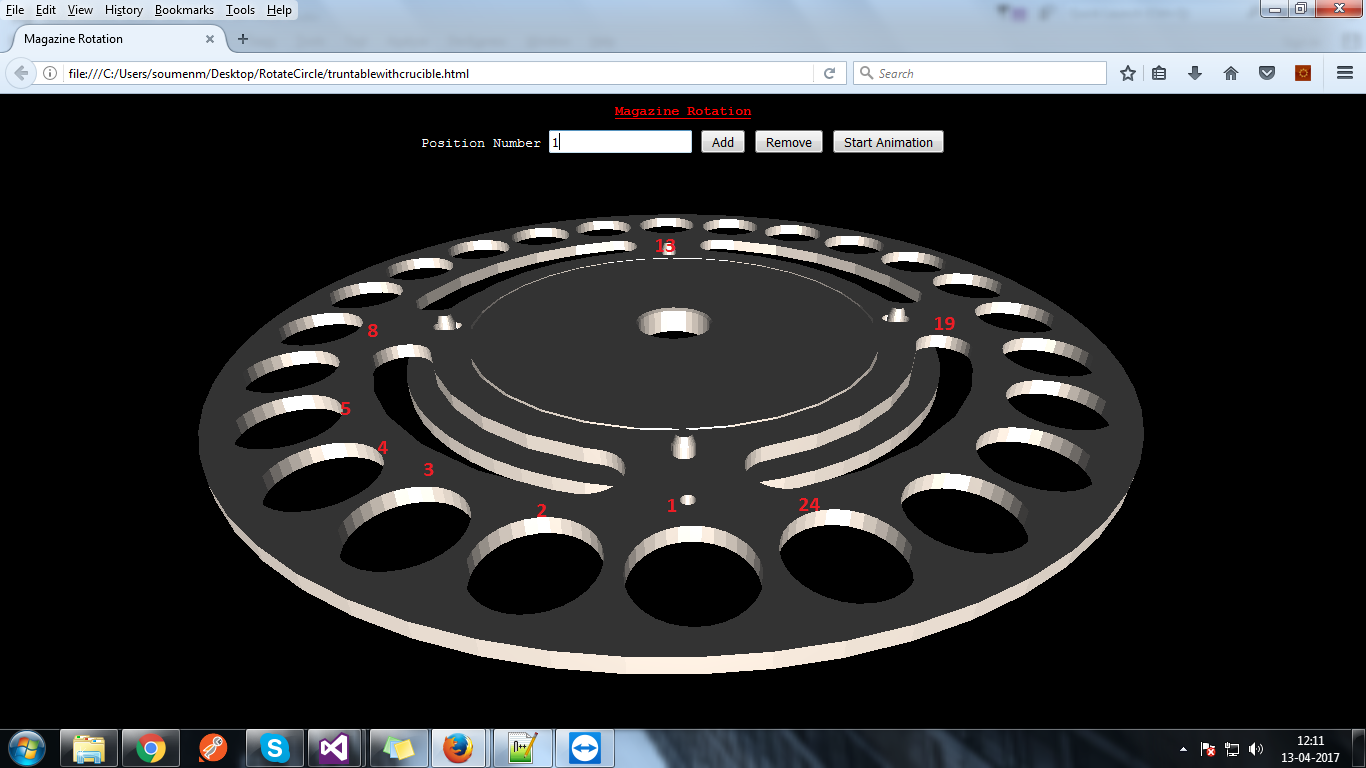

I want to rotate this obj file.If user give position 2 then Obj file rotate to in negative y direction and when position 2 is come in the place of position1 then the rotation is stop.And same for other position.


How about some code, what have you tried so far?

Using this code i can rotate whole group.Stop manually by button click.I have not getting any idea to stop the turntable obj on a particular position dynamically.

function controlanimation()
var startButton = document.getElementById(‘btnanimate’);

        if (initAnim) {
            initAnim = false;
            runAnim = true;
            theta = 0;
        // Start and Pause
        if (runAnim) {
            startButton.value = 'Pause Animation';
            runAnim = false;
            isPlay = true;
        } else {
            startButton.value = 'Restart Animation';
            runAnim = true;
            isPlay = false;


    function animate(delta) {
        if (!isPlay) return;
        theta = 0.01;
        group.rotation.y -= theta;

You can do something like

myAngle = Math.acos( myPosition2.normalize().dot( new THREE.Vector3(1,0,0) );
myObject.rotation.y = myAngle

new THREE.Vector3(1,0,0) makes a vector that lies in the positive x axis, normalize makes your position suitable for the math operation ( unit vector ), dot gives you the cos of the angle. You probably need to use something like Tween.js to manage the actual transition.
