How to point the camera to a specific Mesh from a Group

Questions
,
1

Hello there.

I have this 3d model that is quite complex, it has several nested groups and I is kind of big so I want to be able to point the camera to an specific Mesh or Group, so I can show that specific part in more detail. My two main questions here are,

  1. How to determine the target to point the camera? For this I was told to use Box3 but is not really accurate, I guess I’m doing something wrong because when I add a Box3Helper is not aligned with the mesh/group.
  2. How to tell the PerspectiveCamera or the OrbitControls where to look at.

Some screenshots of the model:

image878×449 57.6 KB


Thanks in advance :slight_smile:

2

You can try this
https://threejs.org/docs/index.html#api/en/core/Object3D.lookAt

1 Like
3

If computing the bounding box does not provide the expected result, consider to just hard-code your focus points.

4

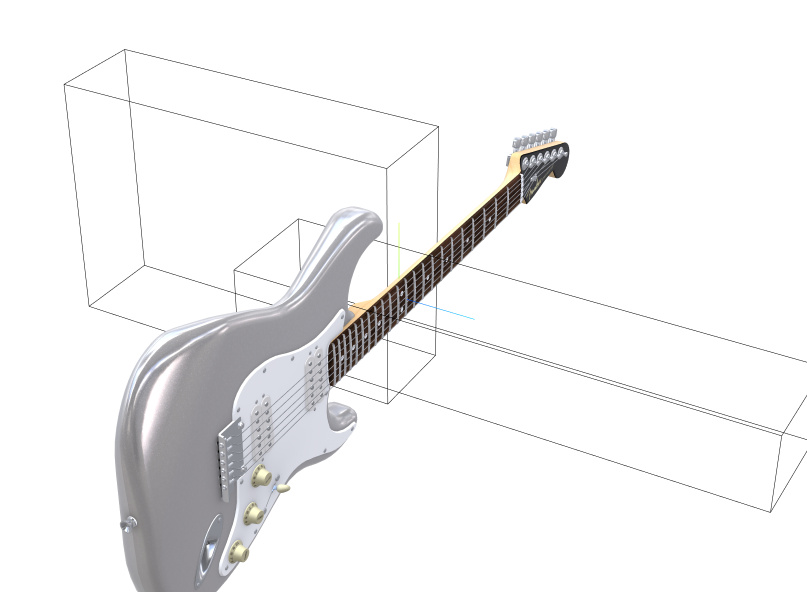

Is not a scalable solution. I must be doing something wrong, check this image, those are the boxes of the body and the neck.

image807×592 66.5 KB

Why are they in a totally different position?

5

They seem to be correct. Are the boxes placed within the mesh (as children), or directly in your scene object? Do you use box3 calculation via geometry or Box3.setFromObject() ?

6

Are the boxes placed within the mesh (as children), or directly in your scene object?

Directly to the scene, here’s the code I’m using

getObjectCenter(mesh, addHelper) {
      const { scene } = this.options;
      const box3 = new Box3().setFromObject(mesh);
      const position = new Vector3();
      box3.getCenter(position);

      if (addHelper) {
        const helper = new Box3Helper(box3, '#000000');
        scene.add(helper);
      }

      return position;
    }
7

Nevermind, I found out I was rotating the scene:
scene.rotation.y = Math.degToRad(rotation);
