How to create a segmented Tube?

Questions
1

I’ve seen examples of creating infinite tubes using a list of points, converting them to a list of vertices, generating a CatmullRomCurve3 and then using that for a TubeGeometry. But I want to create a “tunnel” that has 4 parts like so (excuse the horrendous sketch):

autodraw 5_5_2023
autodraw 5_5_20232220×1325 213 KB

Through the gaps you can see outside the “tunnel”. The bottom of this tube is a flat plane, to mimic a road. I could give the cylinders a certain theta end like Math.PI / 2 to make it 25% of a circle and position them a certain way, but I’m not sure how to have all of the 4 pieces follow the same curve to make it “feel” like a single tube.

1 Like
2

Thanks for the challenging question.

  • Easy way: use a texture with transparent areas that correspond to the gaps
  • Hard way: make a parametric geometry that builds a part of a circular tube

I tried the hard way and here is what I came up with. I hope it can provide you with enough hints or ideas.

https://codepen.io/boytchev/full/poxpGZN


4 Likes
3

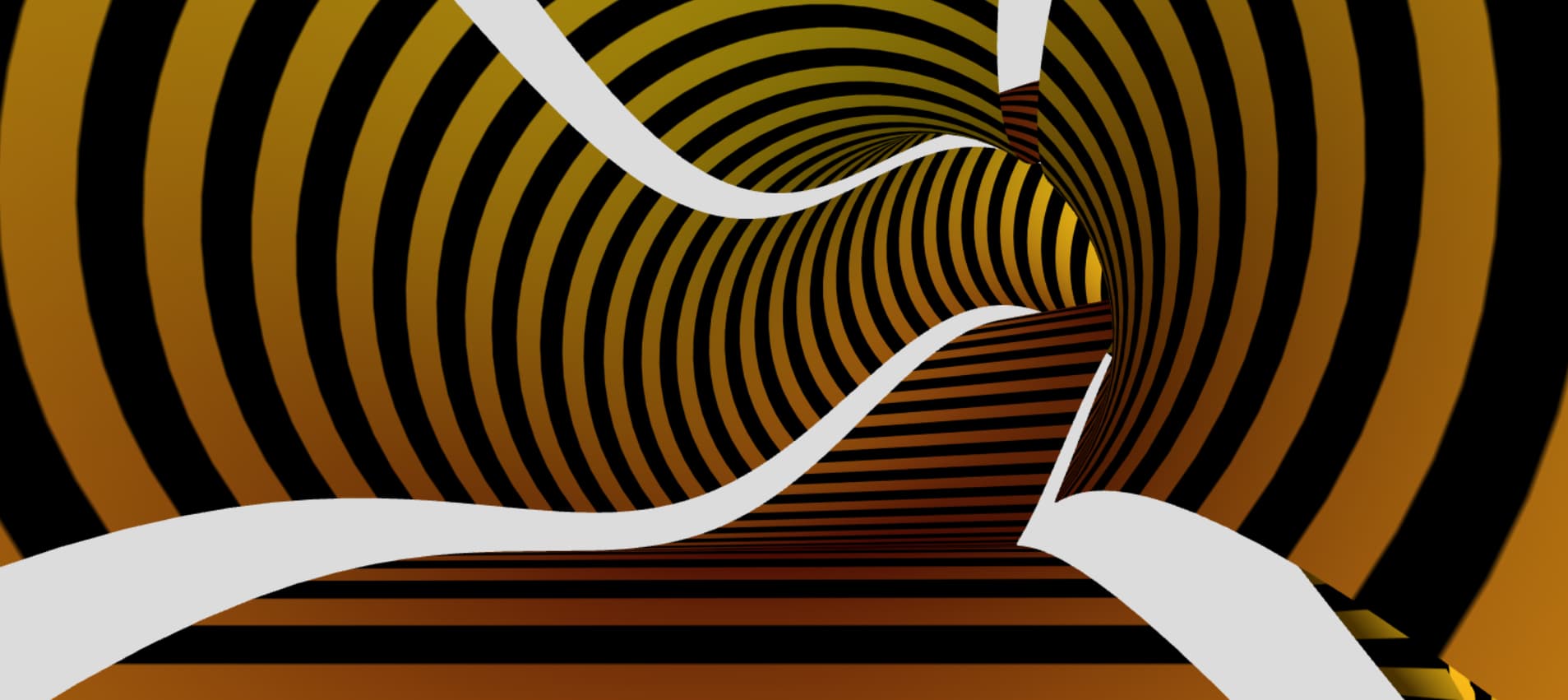

I went another way, with a curve.

изображение952×860 45.2 KB

Demo: https://codepen.io/prisoner849/full/rNqpZGN

3 Likes
4

In @PavelBoytchev’s solution, the flat part on which you move always stays down. In @prisoner849’s solution, you rotate in the tube and the flat part is in different positions.

I have not yet found a solution for the rotation in my problem Inaccurate adjustment when cylinder is deformed. Must see if I can learn something from these solutions. :thinking:

5

I updated the codepen, found a very interesting solution from @ycw to keep camera stable, so the flat part of the tunnel is always oriented horizontally. Comments are in the code.

1 Like
6

Wow some terrific solutions. I’m going to try and wrap my head around the codepens, thanks so much for the help!
